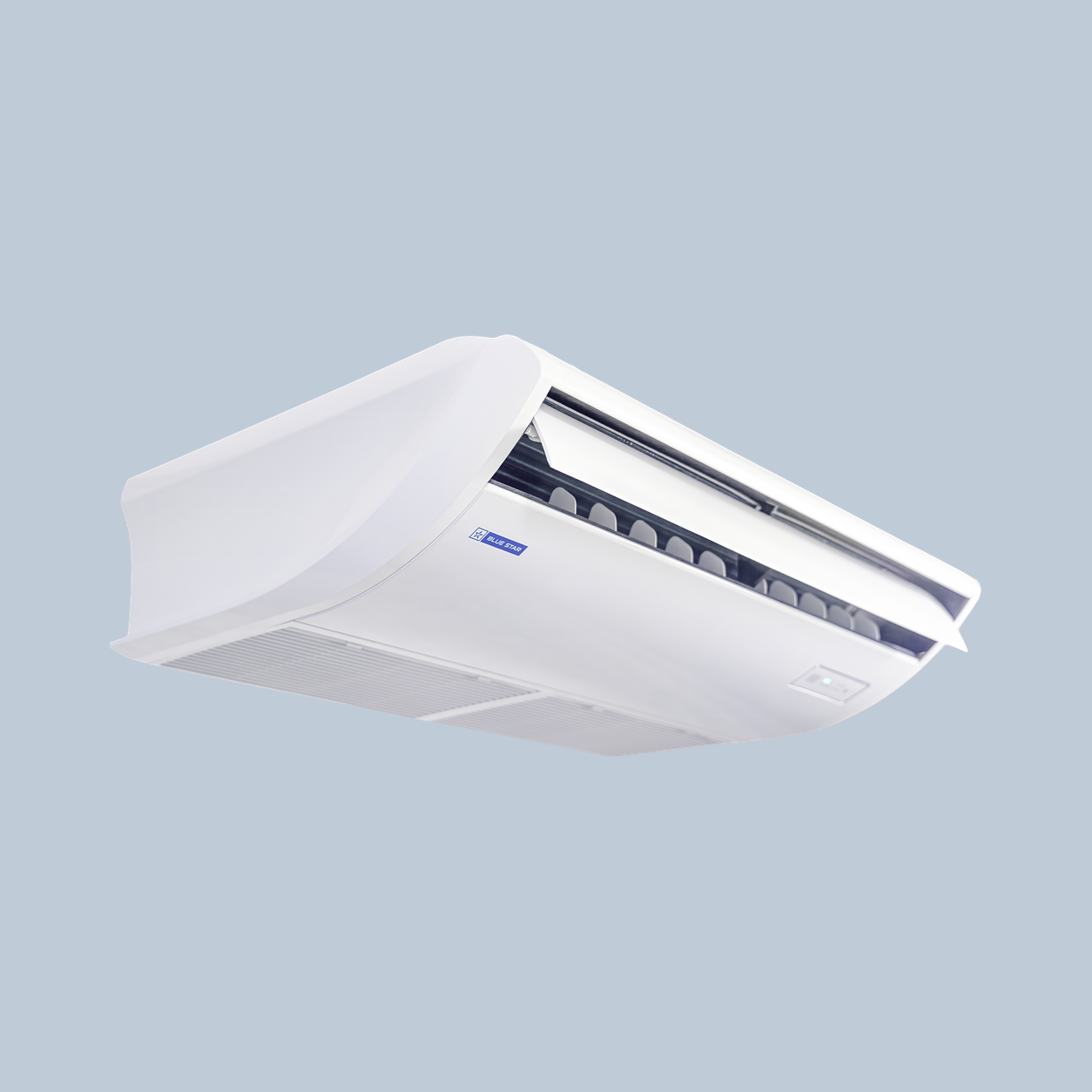

Ceiling Suspended Split AC 4.0 TR (48,000 BTU/h)
One three-phase unit for a whole hall: 48,000 BTU/h cooling, 50,000 BTU/h heating rated down to -7°C outside, and a powerful 1,273 CFM long-throw stream — all without a false ceiling.
Share :
Training halls, restaurant floors, showrooms and banquet rooms of about 350–450 sq ft can run on a single Blue Star CSS48HXYFC1. Its 1.6 m wide indoor unit mounts under the slab and throws up to 1,273 CFM the length of the room, steered by motorized vertical swing — no false ceiling, no cluster of wall units.
Like its 2.0 Ton sibling, it is rated to cool at outdoor temperatures up to 43°C and heat at outdoor temperatures down to -7°C, producing 48,000 BTU/h of cooling and 50,000 BTU/h of heating from a 380–415 V three-phase supply. Fresh Air Provision keeps crowded rooms breathable.
A rotary compressor on R410A, anti-freeze thermostat, self-diagnosis, hidden display and auto restart with memory make it a long-hours commercial machine. Includes a 1-year warranty; Aircon Nepal handles the supply check, installation and after-sales service as the authorized Blue Star distributor.
TOP FEATURES
• Ceiling-suspended design — commercial-grade air conditioning with no false ceiling required
• Hot & Cold heat pump rated for cooling at up to 43°C ambient and heating at down to -7°C
• Long-throw uni-directional airflow with motorized vertical swing covers deep floor areas
• Fresh Air Provision for a healthier indoor environment
• Reliable rotary compressor running on eco-friendly R410A refrigerant
• Hidden display with On/Off Timer and Sleep mode
• Auto Restart with memory function — picks up where it left off after a power cut
• Anti-freeze thermostat and Self Diagnosis for protected, service-friendly operation
• Auto / High / Mid / Low fan modes with a cleanable dust filter
• Easy to clean and maintain
• Warranty: 1 year against manufacturing defects
BEST SUITED FOR
Halls, restaurant floors, showrooms and banquet rooms of roughly 350–450 sq ft (requires three-phase supply).
TECHNICAL SPECIFICATIONS
Nominal capacity | 4.0 TR |
Indoor / outdoor model | CSS48HXYFC1I-00 / CSS48HXYFC1O-00 |
Function | Hot & Cold (heat pump) |
Rated cooling capacity / power input (T1) | 48,000 BTU/h / 4,451 W |
Cooling efficiency (T1) | EER 10.78 BTU/h/W |
Rated heating capacity / power input (H1) | 50,000 BTU/h / 4,658 W |
Heating efficiency (H1) | EER 10.73 BTU/h/W |
Max ambient — cooling / heating | 43°C / -7°C |
Power supply | 380–415 V / 50 Hz / 3 Phase |
Compressor / refrigerant | Rotary / R410A |
Air flow (High/Med/Low) | 1,273 / 987 / 838 CFM (wet) |
Indoor noise (H/M/L) | 52 / 49 / 46 dB(A) |
Indoor unit (W × H × D) / weight | 1635 × 675 × 235 mm / 38 kg |
Outdoor unit (W × H × D) / weight | 940 × 1250 × 340 mm / 90 kg |
Piping — suction / liquid | Φ19.05 mm / Φ9.52 mm |
Max piping length / max vertical | 50 m / 30 m |
Filter | Dust filter |
Key functions | Fresh Air Provision, motorized vertical swing, timer, Sleep, hidden display, auto restart with memory, anti-freeze thermostat, self diagnosis |
Warranty | 1 year against manufacturing defects |
Series | Blue Star CSS (Ceiling Suspended Units) |
