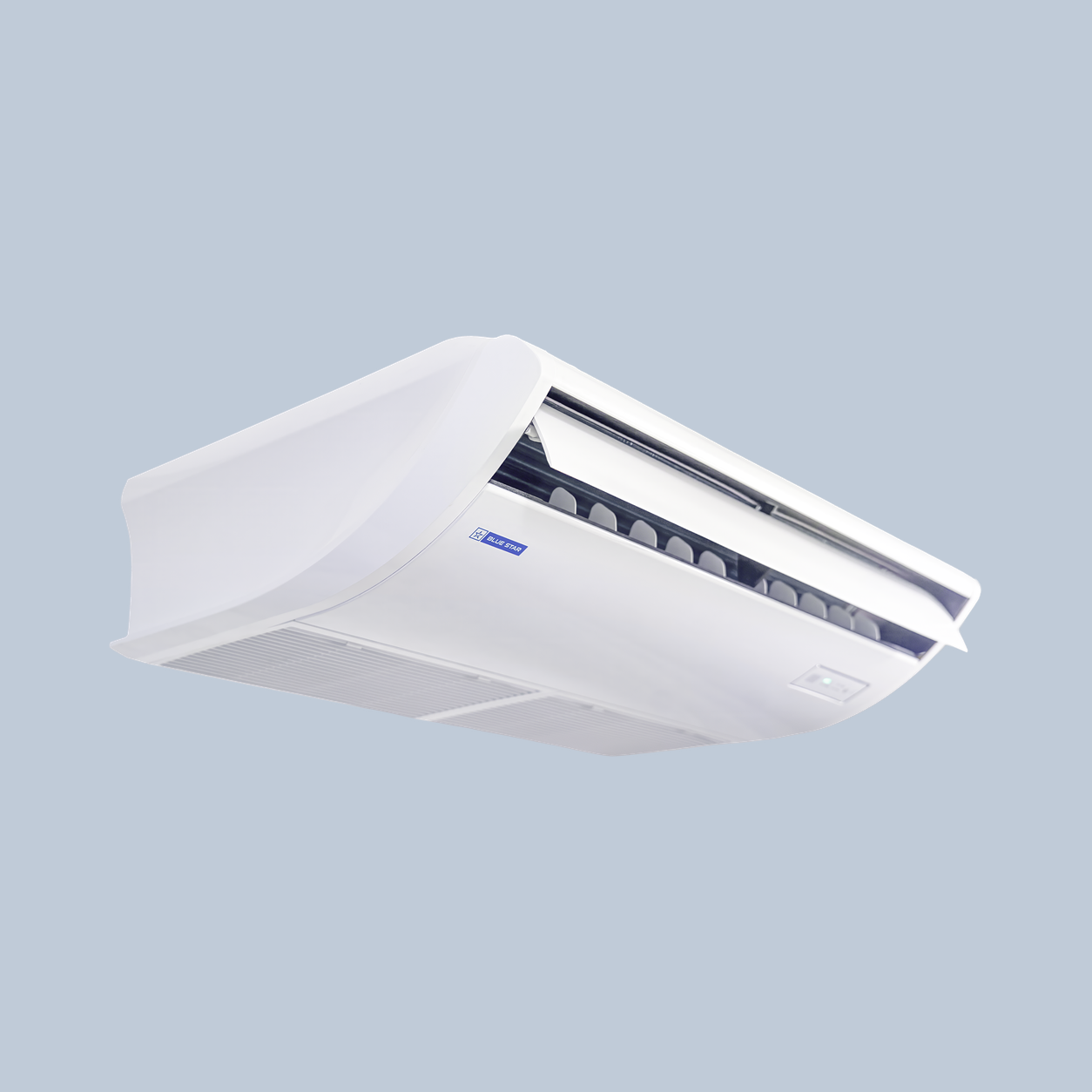

Ceiling Suspended Split AC 2.0 TR (24,000 BTU/h)
No false ceiling? No problem. This 2.0 Ton unit hangs directly below the slab and throws a long stream of air deep into shops and showrooms. Rated to heat at -7°C outdoor temperature — real winter performance for Nepal.
Share :
Many Nepali shops and older buildings have no false ceiling, so cassette ACs are not an option. The Blue Star CSS24HXYFC1 solves this: its slim body mounts directly under the slab and throws up to 701 CFM of air in a long straight stream, with motorized vertical swing, reaching the back of deep rooms of about 180–240 sq ft.
It is rated for genuinely hard weather — cooling at outdoor temperatures up to 43°C and heating at outdoor temperatures down to -7°C. That covers both a Terai summer and a hill-town winter. Cooling output is 24,000 BTU/h; winter heating is 26,500 BTU/h.
Fresh Air Provision improves the room's air, auto restart with memory rides through power cuts, and the anti-freeze thermostat, self-diagnosis and hidden display keep ownership simple. Includes a 1-year warranty, installed and serviced by Aircon Nepal, the authorized Blue Star distributor.
TOP FEATURES
• Ceiling-suspended design — commercial-grade air conditioning with no false ceiling required
• Hot & Cold heat pump rated for cooling at up to 43°C ambient and heating at down to -7°C
• Long-throw uni-directional airflow with motorized vertical swing covers deep floor areas
• Fresh Air Provision for a healthier indoor environment
• Reliable rotary compressor running on eco-friendly R410A refrigerant
• Hidden display with On/Off Timer and Sleep mode
• Auto Restart with memory function — picks up where it left off after a power cut
• Anti-freeze thermostat and Self Diagnosis for protected, service-friendly operation
• Auto / High / Mid / Low fan modes with a cleanable dust filter
• Easy to clean and maintain
• Warranty: 1 year against manufacturing defects
BEST SUITED FOR
Shops, showrooms, restaurants, classrooms and offices of roughly 180–240 sq ft without a false ceiling.
TECHNICAL SPECIFICATIONS
Nominal capacity | 2.0 TR |
Indoor / outdoor model | CSS24HXYFC1I-00 / CSS24HXYFC1O-00 |
Function | Hot & Cold (heat pump) |
Rated cooling capacity / power input (T1) | 24,000 BTU/h / 2,230 W |
Cooling efficiency (T1) | EER 10.76 BTU/h/W |
Rated heating capacity / power input (H1) | 26,500 BTU/h / 2,254 W |
Heating efficiency (H1) | EER 11.76 BTU/h/W |
Max ambient — cooling / heating | 43°C / -7°C |
Power supply | 220–240 V / 50 Hz / 1 Phase |
Compressor / refrigerant | Rotary / R410A |
Air flow (High/Med/Low) | 701 / 614 / 526 CFM (wet) |
Indoor noise (H/M/L) | 45 / 43 / 40 dB(A) |
Indoor unit (W × H × D) / weight | 1055 × 675 × 235 mm / 24 kg |
Outdoor unit (W × H × D) / weight | 900 × 650 × 310 mm / 51 kg |
Piping — suction / liquid | Φ15.88 mm / Φ9.52 mm |
Max piping length / max vertical | 30 m / 15 m |
Filter | Dust filter |
Key functions | Fresh Air Provision, motorized vertical swing, timer, Sleep, hidden display, auto restart with memory, anti-freeze thermostat, self diagnosis |
Warranty | 1 year against manufacturing defects |
Series | Blue Star CSS (Ceiling Suspended Units) |
