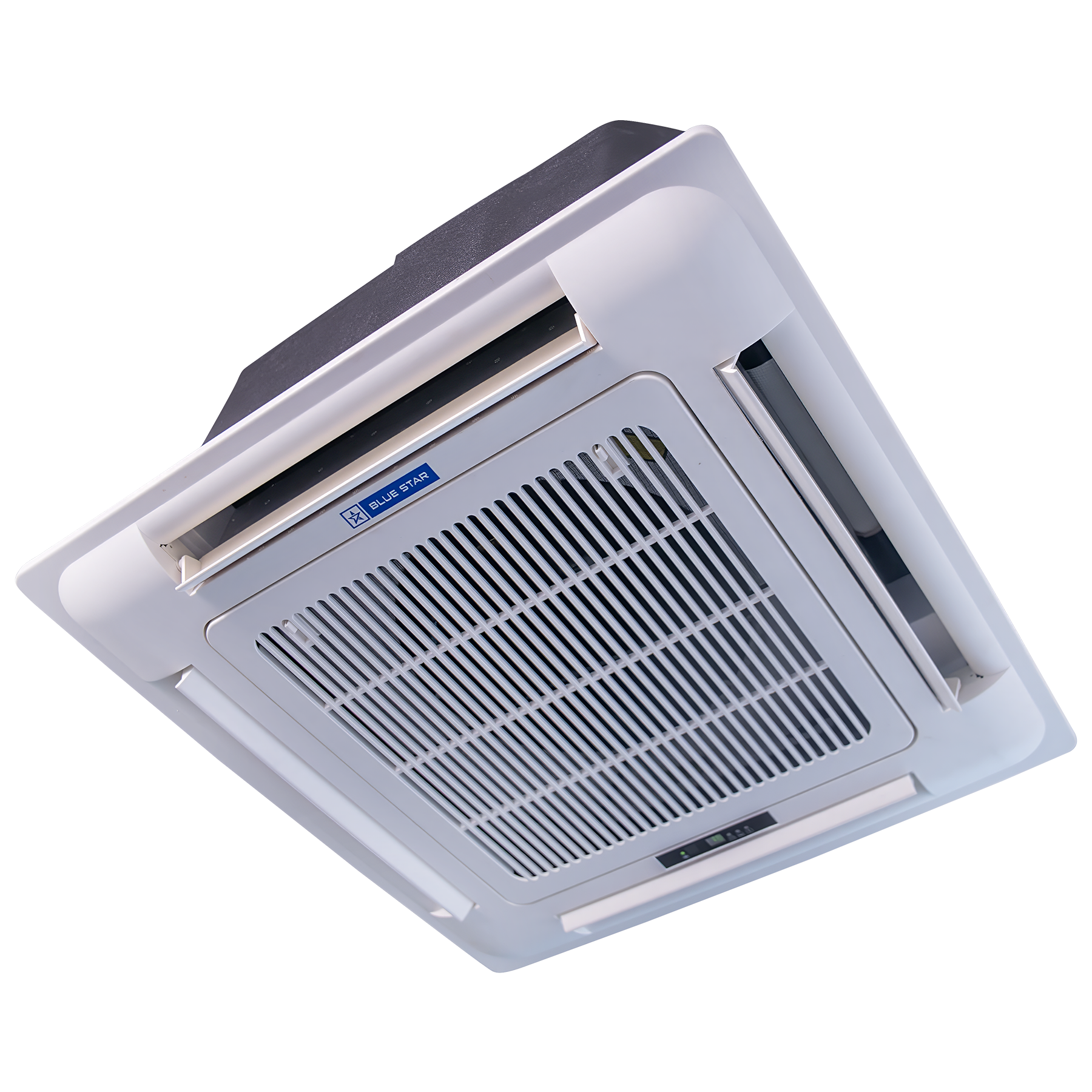

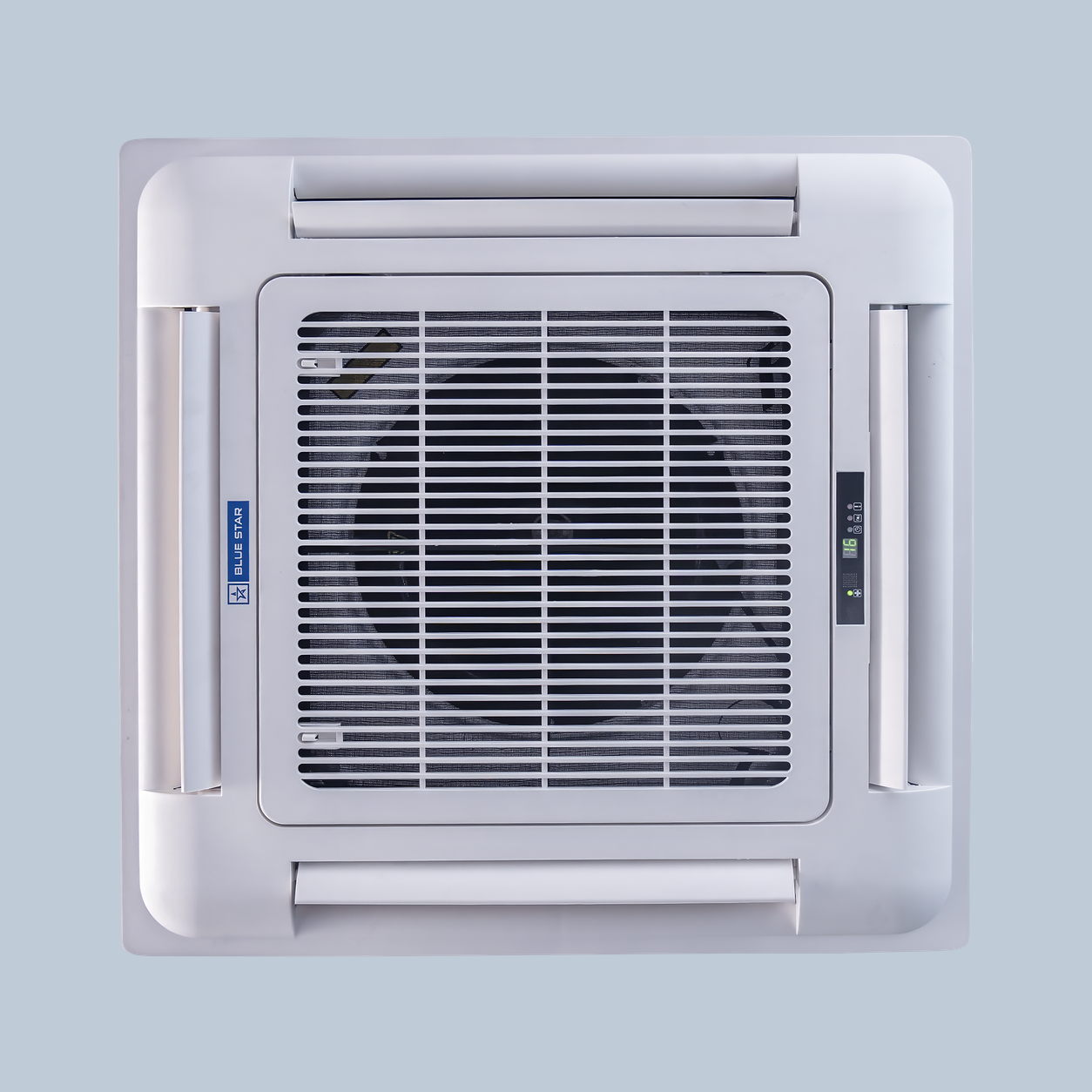

Ceiling Cassette Split AC 2.0 TR (24,000 BTU/h)
Share :
In a restaurant or showroom, the guest at the far table should feel the same comfort as the one under the unit. This Blue Star 2.0 Ton cassette makes that happen with up to 1,400 CMH of airflow through an eight-side outlet with wide automatic swing — ideal for spaces of about 180–240 sq ft.
Summer cooling is 24,000 BTU/h; winter heating is 26,500 BTU/h at an excellent efficiency of COP 3.54, which matters in commercial spaces that heat all day. Fresh Air Intake keeps a busy room's air from going stale, and 165–265 V wide-voltage protection plus auto restart handle Nepal's power realities.
Blue Fin protected coils, R410A gas with POE oil, a fire-resistant PCB and the full Timer/Sleep/ECO/Super mode set make it a dependable business machine. Includes a 1-year warranty; Aircon Nepal, the authorized Blue Star distributor, handles the survey, installation and service.
TOP FEATURES
• Four-way ceiling cassette with automatic swing and omni-directional airflow for uniform comfort across the room
• Fixed-speed heat pump — Hot & Cold comfort through both Nepali summers and winters
• Eight-side air outlet with wide swing angle (1.5 TR models and above)
• Fresh Air Intake provision improves indoor air quality instead of recirculating stale air (1.5 TR and above)
• Wide voltage operation from 165 V to 265 V protects the unit against unstable supply (single-phase models)
• Eco-friendly R410A refrigerant with POE oil for superior heat transfer and lubrication
• Hydrophilic Blue Fin evaporator and anti-corrosive Blue Fin copper condenser
• Sleep Mode, On/Off Timer, energy-saving ECO Mode and Super Mode
• Auto Restart function — resumes automatically after power cuts, no manual resetting
• Fire-resistant PCB board and easy-to-clean white duct filter
• Warranty: 1 year against manufacturing defects
BEST SUITED FOR
Nominal capacity | 2.0 TR |
Function | Hot & Cold (fixed-speed heat pump) |
Rated cooling capacity / power input | 24,000 BTU/h (7,034 W) / 2,432 W |
Cooling efficiency | EER 9.87 BTU/h/W (2.89 W/W) |
Rated heating capacity / power input | 26,500 BTU/h (7,767 W) / 2,192 W |
Heating efficiency | EER 12.09 BTU/h/W (COP 3.54 W/W) |
Power supply | 220–240 V / 50 Hz / 1 Phase |
Wide voltage operation | 165 V – 265 V |
Air outlet | Eight-side outlet with wide swing angle; Fresh Air Intake provision |
Air flow (Turbo/High/Med-Low) | 1,400 / 1,200 / 950 CMH (wet) |
Indoor noise (H/M/L) | 43 / 41 / 37 dB(A) |
Indoor unit (W × H × D) / weight | 830 × 830 × 230 mm / 23 kg |
Outdoor unit (W × H × D) / weight | 900 × 650 × 310 mm / 51 kg |
Outdoor noise | 58 dB(A) |
Piping — suction / liquid | Φ15.88 mm (5/8″) / Φ9.52 mm (3/8″) |
Filter / coils | White duct filter; hydrophilic Blue Fin evaporator; anti-corrosive Blue Fin copper condenser |
Refrigerant | R410A (with POE oil) |
Mains power connection | Indoor unit |
Warranty | 1 year against manufacturing defects |
Series | Blue Star HUYFA (Fixed Speed Heat Pump Cassette AC) — 2.0 TR class |
