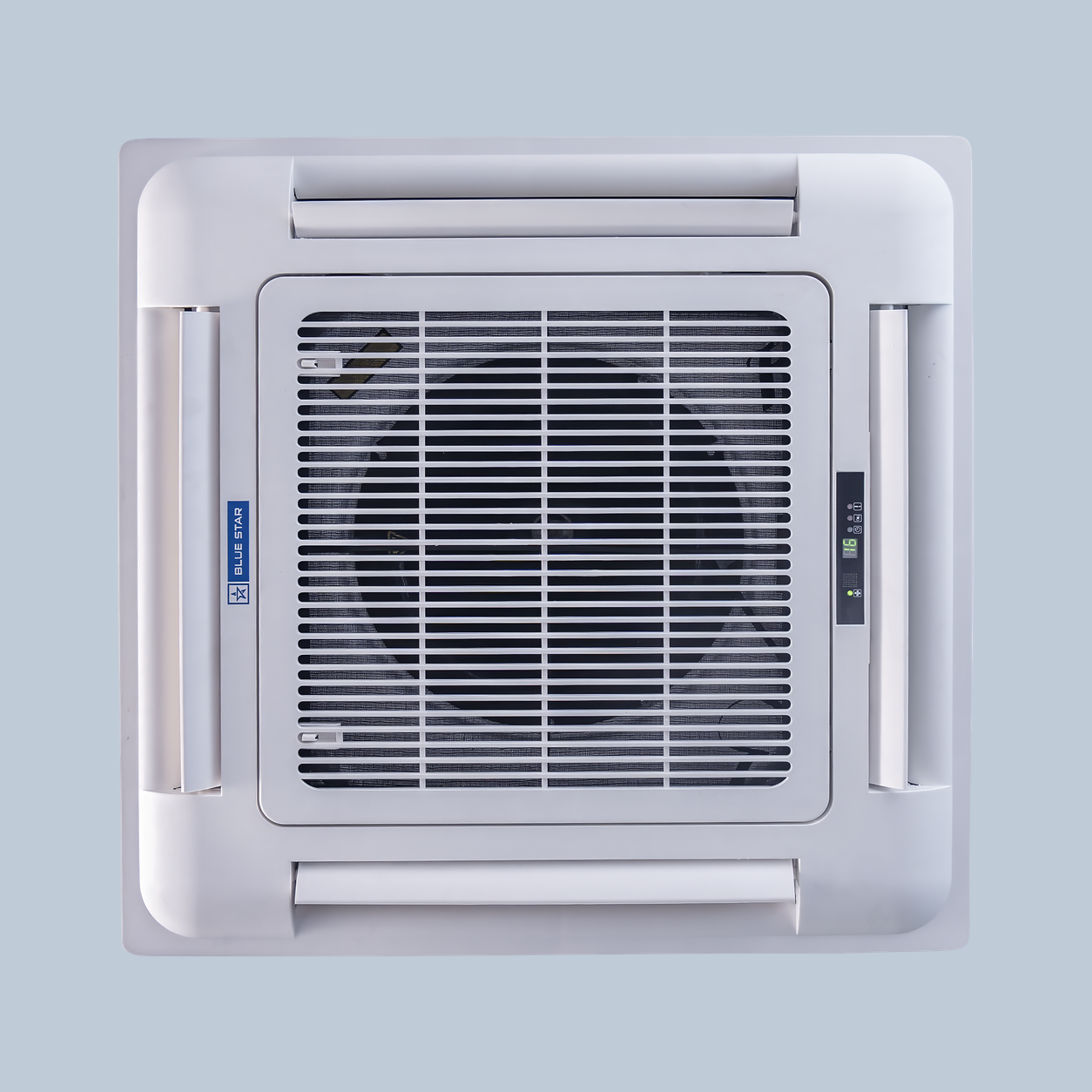

Ceiling Cassette Split AC 4.0 TR (48,000 BTU/h)
Condition a whole hall with one flush ceiling unit: 48,000 BTU/h of cooling, 50,000 BTU/h of heating and 1,700 CMH of eight-way airflow. A three-phase cassette for banquet areas, training halls and large floors of 350–450 sq ft.
Share :
Instead of lining a hall with wall units, mount one Blue Star 4.0 Ton cassette in the centre of the false ceiling. It moves up to 1,700 CMH of air through an eight-side outlet with wide swing, covering banquet spaces, training halls and large retail or office floors of about 350–450 sq ft.
Running on a 380–415 V three-phase supply, it delivers 48,000 BTU/h of cooling in summer and 50,000 BTU/h of heating in winter — one machine for the full calendar. Fresh Air Intake supports better air in crowded rooms, and auto restart resumes operation after power cuts.
R410A gas with POE oil, Blue Fin protection on both coils and a fire-resistant PCB keep it dependable through long commercial hours. Includes a 1-year warranty; Aircon Nepal checks your three-phase supply, coordinates the false ceiling and installs the unit as the authorized Blue Star distributor.
TOP FEATURES
• Four-way ceiling cassette with automatic swing and omni-directional airflow for uniform comfort across the room
• Fixed-speed heat pump — Hot & Cold comfort through both Nepali summers and winters
• Eight-side air outlet with wide swing angle (1.5 TR models and above)
• Fresh Air Intake provision improves indoor air quality instead of recirculating stale air (1.5 TR and above)
• Wide voltage operation from 165 V to 265 V protects the unit against unstable supply (single-phase models)
• Eco-friendly R410A refrigerant with POE oil for superior heat transfer and lubrication
• Hydrophilic Blue Fin evaporator and anti-corrosive Blue Fin copper condenser
• Sleep Mode, On/Off Timer, energy-saving ECO Mode and Super Mode
• Auto Restart function — resumes automatically after power cuts, no manual resetting
• Fire-resistant PCB board and easy-to-clean white duct filter
• Warranty: 1 year against manufacturing defects
BEST SUITED FOR
Halls, banquet spaces, training rooms and large commercial floors of roughly 350–450 sq ft per unit (requires three-phase supply).
TECHNICAL SPECIFICATIONS
Nominal capacity | 4.0 TR |
Function | Hot & Cold (fixed-speed heat pump) |
Rated cooling capacity / power input | 48,000 BTU/h (14,068 W) / 4,636 W |
Cooling efficiency | EER 10.35 BTU/h/W (3.03 W/W) |
Rated heating capacity / power input | 50,000 BTU/h (14,654 W) / 5,079 W |
Heating efficiency | EER 9.84 BTU/h/W (COP 2.89 W/W) |
Power supply | 380–415 V / 50 Hz / 3 Phase |
Air outlet | Eight-side outlet with wide swing angle; Fresh Air Intake provision |
Air flow (Turbo/High/Med-Low) | 1,700 / 1,500 / 1,400 CMH (wet) |
Indoor noise (H/M/L) | 45 / 43 / 41 dB(A) |
Indoor unit (W × H × D) / weight | 830 × 830 × 290 mm / 30 kg |
Outdoor unit (W × H × D) / weight | 940 × 1250 × 340 mm / 90 kg |
Outdoor noise | 60 dB(A) |
Piping — suction / liquid | Φ19.05 mm (3/4″) / Φ9.52 mm (3/8″) |
Filter / coils | White duct filter; hydrophilic Blue Fin evaporator; anti-corrosive Blue Fin copper condenser |
Refrigerant | R410A (with POE oil) |
Mains power connection | Outdoor unit |
Warranty | 1 year against manufacturing defects |
Series | Blue Star HUYFA (Fixed Speed Heat Pump Cassette AC) |
