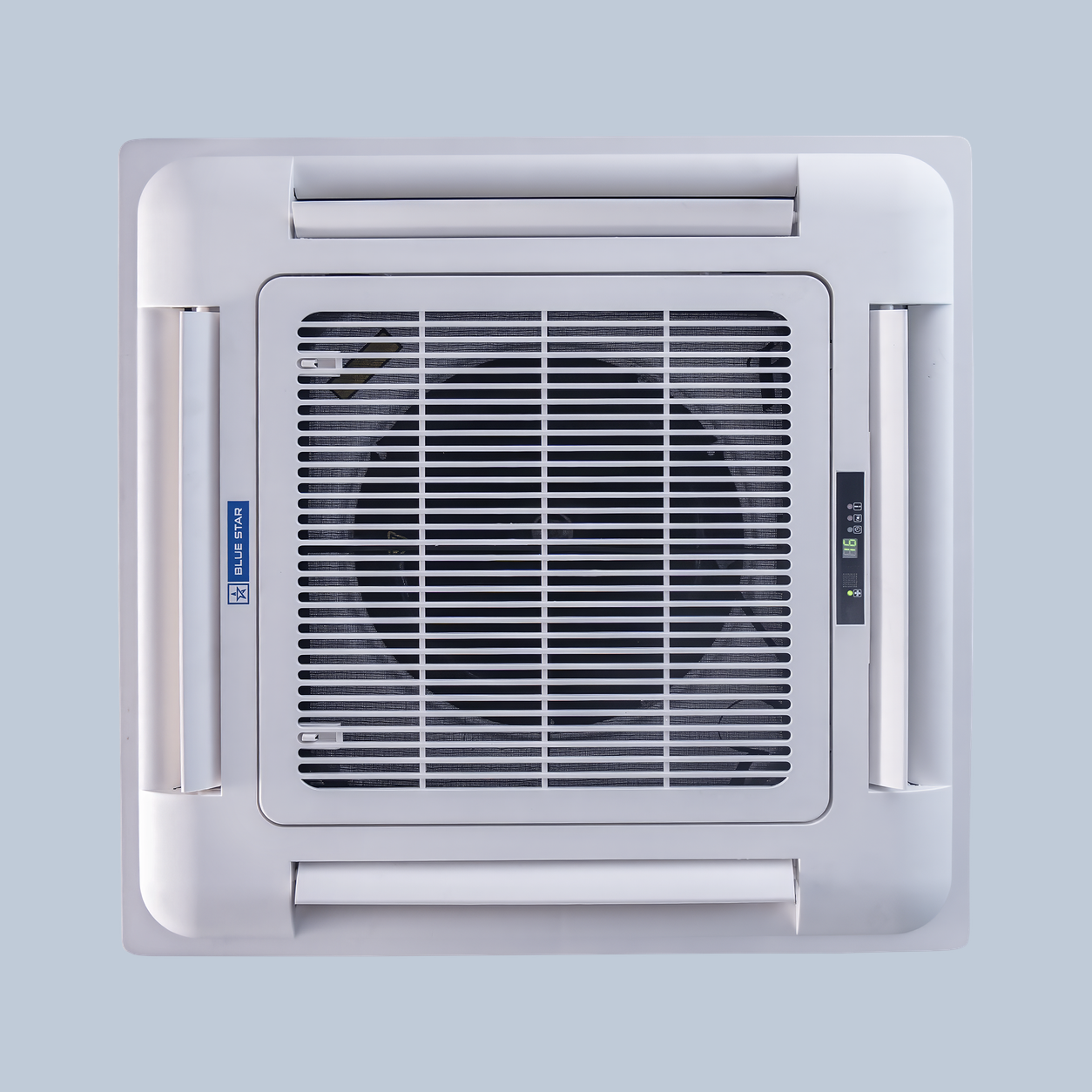

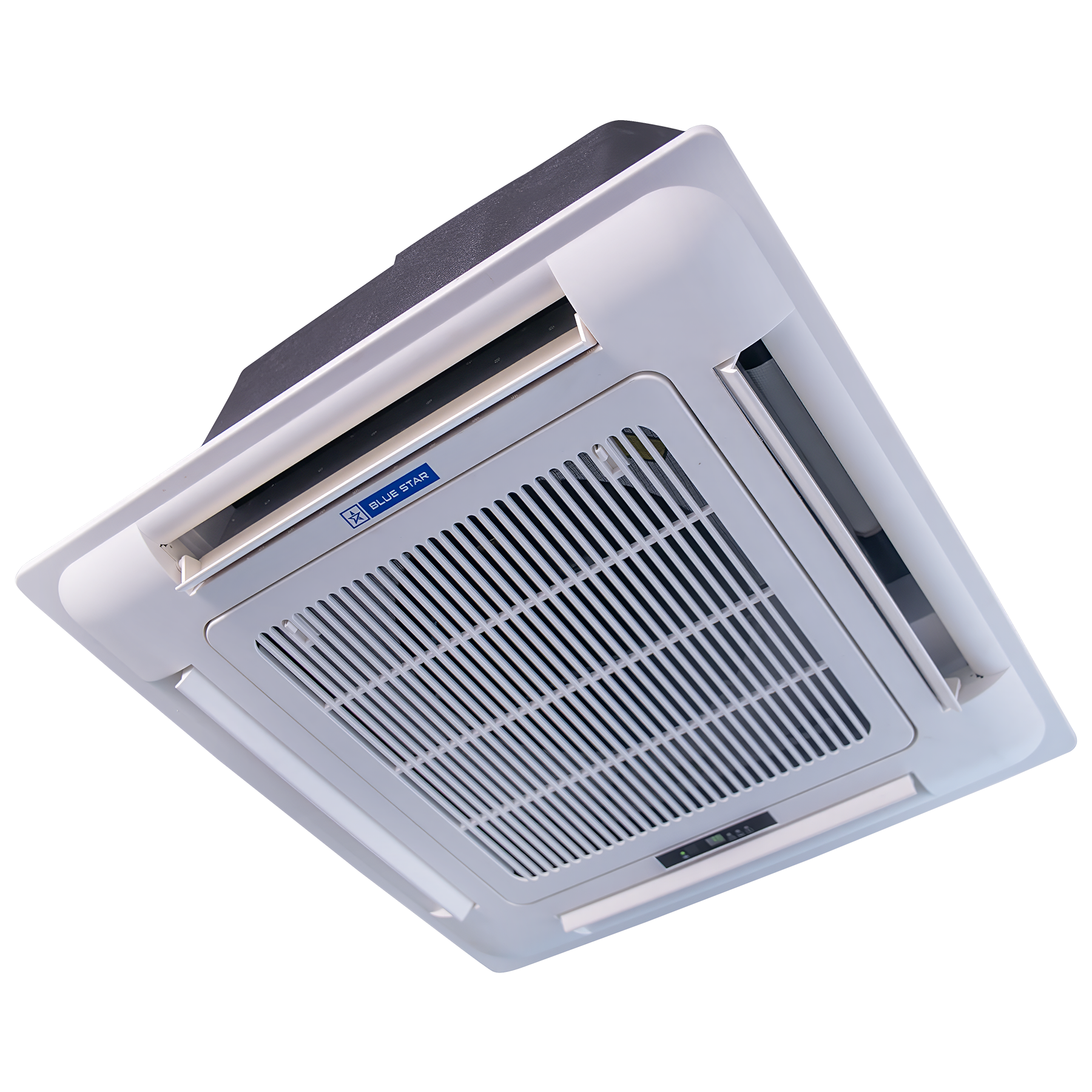

Ceiling Cassette Split AC 1.0 TR (12,000 BTU/h)
A neat ceiling cassette that disappears into the false ceiling and cools or heats the room from the centre. Compact 575 × 575 mm size for cabins and boutiques, and it keeps running even when voltage swings between 165 V and 265 V.
Share :
When the interior matters — a boutique, a clinic, a meeting cabin — a wall AC can spoil the look. This Blue Star 1.0 Ton cassette fits inside the false ceiling, leaving only a slim white panel visible, and conditions the room evenly from above. The compact 575 × 575 mm chassis suits rooms of about 120 sq ft.
It is a true Hot & Cold heat pump: 12,000 BTU/h of cooling for summer and 12,000 BTU/h of heating for winter, spread by the four-way outlet with automatic swing. And because Nepali voltage is not always steady, its specially designed low-pressure compressor keeps working anywhere from 165 V to 265 V.
R410A gas with POE oil, a hydrophilic Blue Fin indoor coil and an anti-corrosive Blue Fin copper outdoor coil give it a long commercial life. Auto restart brings it back after power cuts without any resetting, and Sleep, Timer, ECO and Super modes handle daily needs. Supplied with a 1-year warranty and installed by Aircon Nepal, the authorized Blue Star distributor.
TOP FEATURES
• Four-way ceiling cassette with automatic swing and omni-directional airflow for uniform comfort across the room
• Fixed-speed heat pump — Hot & Cold comfort through both Nepali summers and winters
• Eight-side air outlet with wide swing angle (1.5 TR models and above)
• Fresh Air Intake provision improves indoor air quality instead of recirculating stale air (1.5 TR and above)
• Wide voltage operation from 165 V to 265 V protects the unit against unstable supply (single-phase models)
• Eco-friendly R410A refrigerant with POE oil for superior heat transfer and lubrication
• Hydrophilic Blue Fin evaporator and anti-corrosive Blue Fin copper condenser
• Sleep Mode, On/Off Timer, energy-saving ECO Mode and Super Mode
• Auto Restart function — resumes automatically after power cuts, no manual resetting
• Fire-resistant PCB board and easy-to-clean white duct filter
• Warranty: 1 year against manufacturing defects
BEST SUITED FOR
Cabins, meeting rooms, boutiques, clinics and reception areas of roughly 120 sq ft with a false ceiling.
TECHNICAL SPECIFICATIONS
Nominal capacity | 1.0 TR |
Function | Hot & Cold (fixed-speed heat pump) |
Rated cooling capacity / power input | 12,000 BTU/h (3,517 W) / 1,150 W |
Cooling efficiency | EER 10.43 BTU/h/W (3.06 W/W) |
Rated heating capacity / power input | 12,000 BTU/h (3,517 W) / 1,170 W |
Heating efficiency | EER 10.26 BTU/h/W (COP 3.01 W/W) |
Power supply | 220–240 V / 50 Hz / 1 Phase |
Wide voltage operation | 165 V – 265 V |
Air flow (Turbo/High/Med-Low) | 800 / 750 / 600 CMH (wet) |
Indoor noise (H/M/L) | 41 / 38 / 34 dB(A) |
Indoor unit (W × H × D) / weight | 575 × 575 × 260 mm / 18 kg (fits standard ceiling grids) |
Outdoor unit (W × H × D) / weight | 760 × 550 × 250 mm / 30 kg |
Outdoor noise | 55 dB(A) |
Piping — suction / liquid | Φ12.7 mm (1/2″) / Φ6.35 mm (1/4″) |
Filter / coils | White duct filter; hydrophilic Blue Fin evaporator; anti-corrosive Blue Fin copper condenser |
Refrigerant | R410A (with POE oil) |
Mains power connection | Indoor unit |
Warranty | 1 year against manufacturing defects |
Series | Blue Star HUYFA (Fixed Speed Heat Pump Cassette AC) |
